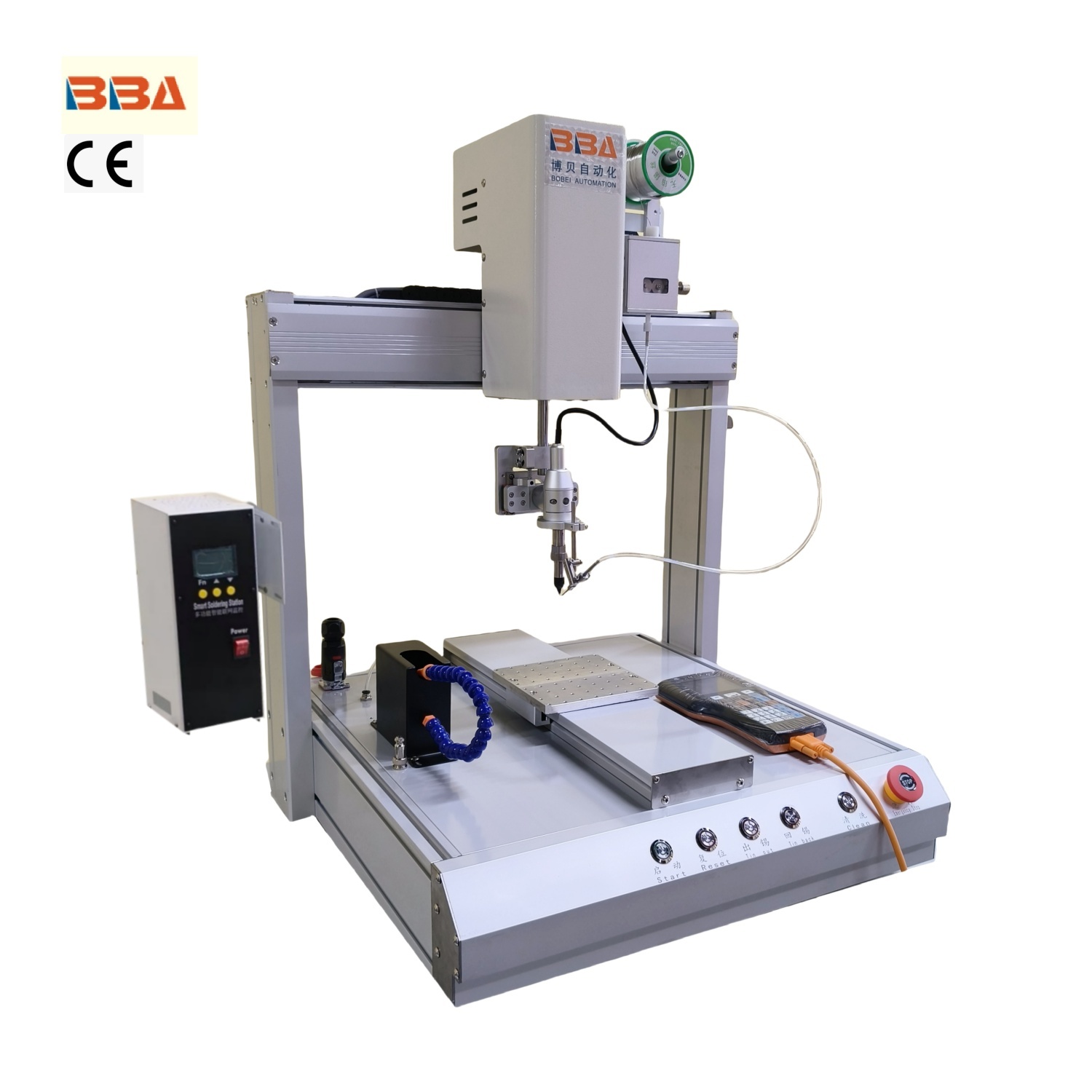

BBA Industrial Grade robotic soldering machine with Iron Tip and Auto Wire Feeding, used in Electronic Components

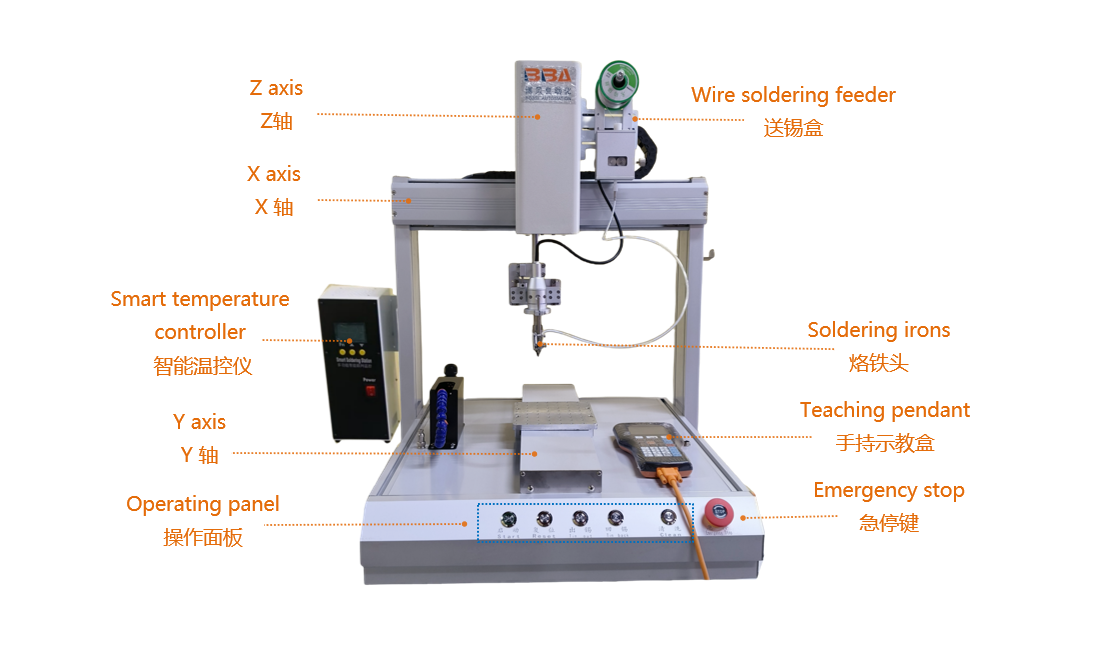

The soldering machine integrates solder heating, temperature regulation, and solder wire feeding to optimize both efficiency and precision during the soldering process.
Equipped with dual soldering tips, allowing simultaneous soldering of two points, doubling productivity.
Optimized for use with lead-free solder, adhering to modern environmental and regulatory requirements.
Applicable tin wire: 0.3~2.0mm
Suitable for industries such as electronics production, automotive assembly, appliance manufacturing, PCB soldering, data cable assembly, medical device production, toy assembly, and more.

Model	BBA-331HX (Single Y platform)		BBA-5331HX (Dual Y platforms)		BBA-6331HX (Dual soldering systems)		BBA CUSTOMIZED
Voltage	AC 110/220V 50/60HZ
Power	350W		350W		700W		To order
Movable range	X	300mm	X	500mm	X1/X2	500mm	To order
	Y	300mm	Y1/Y2	300mm	Y1/Y2	300mm
	Z	100mm	Z	100mm	Z	100mm
	R	360°	R	360°	R	360°
Max moving speed	X	600mm/s	X	600mm/s	X1/X2	600mm/s	To order
	Y	600mm/s	Y1/Y2	600mm/s	Y1/Y2	600mm/s
	Z	400mm/s	Z	400mm/s	Z	400mm/s
	R	300°/s	R	300°/s	R	300°/s
Repeat Positioning Accuracy	±0.02mm (X * Y * Z), ±0.05° (R)						To order
Maximum Load Weight	8KG (For Work Platform)						To order
Programming File Capacity	256MB, up to 999 files, single file up to 1000 points						To order
Preheating Temperature Range	0℃~ 550℃						To order
Solder Wire Diameter	0.4, 0.6, 0.8, 1.0, 1.2,1.6 (mm)						To order
Tin feeding control	Precision stepper motor						To order
External Dimensions(LWH)	706085(CM）		856085(CM）		1006085(CM）		To order
Weight	65KG		90KG		120KG		To order

Product Description

The soldering machine integrates solder heating, temperature regulation, and solder wire feeding to optimize both efficiency and precision during the soldering process.
Equipped with dual soldering tips, allowing simultaneous soldering of two points, doubling productivity.
Optimized for use with lead-free solder, adhering to modern environmental and regulatory requirements.
Applicable tin wire: 0.3~2.0mm
Suitable for industries such as electronics production, automotive assembly, appliance manufacturing, PCB soldering, data cable assembly, medical device production, toy assembly, and more.

Model	BBA-331HX (Single Y platform)		BBA-5331HX (Dual Y platforms)		BBA-6331HX (Dual soldering systems)		BBA CUSTOMIZED
Voltage	AC 110/220V 50/60HZ
Power	350W		350W		700W		To order
Movable range	X	300mm	X	500mm	X1/X2	500mm	To order
	Y	300mm	Y1/Y2	300mm	Y1/Y2	300mm
	Z	100mm	Z	100mm	Z	100mm
	R	360°	R	360°	R	360°
Max moving speed	X	600mm/s	X	600mm/s	X1/X2	600mm/s	To order
	Y	600mm/s	Y1/Y2	600mm/s	Y1/Y2	600mm/s
	Z	400mm/s	Z	400mm/s	Z	400mm/s
	R	300°/s	R	300°/s	R	300°/s
Repeat Positioning Accuracy	±0.02mm (X * Y * Z), ±0.05° (R)						To order
Maximum Load Weight	8KG (For Work Platform)						To order
Programming File Capacity	256MB, up to 999 files, single file up to 1000 points						To order
Preheating Temperature Range	0℃~ 550℃						To order
Solder Wire Diameter	0.4, 0.6, 0.8, 1.0, 1.2,1.6 (mm)						To order
Tin feeding control	Precision stepper motor						To order
External Dimensions(LWH)	706085(CM）		856085(CM）		1006085(CM）		To order
Weight	65KG		90KG		120KG		To order
