How to Set Up a Multi-Axis Screw Tightening System

Implementing a multi-axis screw tightening system is a significant step forward for any manufacturing line focused on precision, efficiency, and reliability. These sophisticated systems can handle multiple fastening points simultaneously or in rapid sequence, drastically reducing cycle times and eliminating human error. Setting up such a system, however, requires careful planning and execution. This guide outlines the key steps involved in deploying a successful multi-axis tightening solution.

1. Pre-Installation Planning and Design

Thorough planning is the most critical phase of the setup process. Rushing this stage can lead to costly delays and subpar performance later.

• Define Application Requirements: Clearly identify the product(s) to be assembled. Determine the number of screws, their locations, torque and angle specifications, and the required sequence for each joint.
• Select the Right System: Choose a system with the appropriate number of spindles and the necessary reach to access all fastening points on your workpiece. Consider whether a simultaneous tightening (all spindles at once) or a sequential approach is best for your product's structure and accuracy needs.
• Workholding and Fixturing: Design a robust fixture that securely holds the product in place during the violent forces of simultaneous tightening. The fixture must prevent flexing or misalignment, which can lead to inaccurate torque readings and product damage.
• Integration Strategy: Plan how the system will integrate with your existing production line. This includes mechanical integration (conveyors, lifts), electrical connections (PLC I/O, safety circuits), and data communication (MES/ERP systems) for traceability.

2. Mechanical and Electrical Installation

With a solid plan in place, the physical installation can begin.

• Foundation and Mounting: Ensure the system is mounted on a stable, level surface capable of handling its weight and the reactive forces generated during operation.
• Spindle Alignment: Precisely align each spindle to its corresponding screw hole. Misalignment is a primary cause of cross-threading, which damages both the product and the screwdriver bits. Use laser alignment tools for the highest accuracy.
• Power and Air Supply: Provide clean, stable electrical power and compressed air according to the manufacturer's specifications. Voltage fluctuations or dirty air can severely impact performance and equipment lifespan.
• Safety Circuitry: Integrate all necessary safety components, such as light curtains, area scanners, or emergency stop buttons, into the machine's safety circuit. This is non-negotiable for operator protection.

3. System Configuration and Programming

This is where the system is taught how to perform its task.

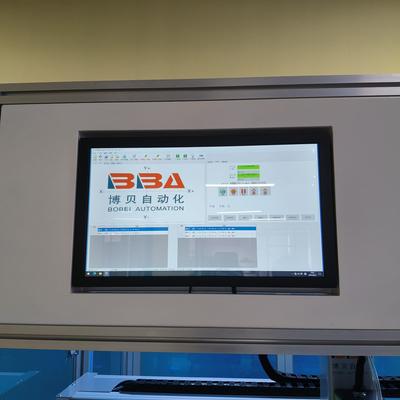

• Controller Setup: Program the system's controller with the tightening parameters for each spindle: target torque, torque window, target angle, and acceptable tolerances. For complex joints, angle-controlled tightening is often more accurate than pure torque control.
• Sequence Programming: Define the order in which spindles will operate if not simultaneous. This is crucial for minimizing part distortion.
• Data Logging Setup: Configure the system to collect and store data from every tightening operation. Each record should include a timestamp, spindle ID, actual torque, final angle, and a pass/fail status. This data is essential for full traceability and quality assurance.
• IO Configuration: Map the digital inputs and outputs to communicate seamlessly with the line PLC. For example, an output signal indicating "Tightening Cycle Complete" or an input to "Start Next Cycle."

4. Calibration, Testing, and Validation

Before going live, the system must be rigorously tested.

• Calibration: Ensure all torque transducers are calibrated according to a traceable standard. The frequency of calibration should be defined based on usage and criticality.
• Dry-Run Testing: Run the system without a product to verify spindle sequencing, movement, and communication signals.
• Process Validation: Run multiple cycles with sample products. Use a calibrated torque analyzer to verify that the system is applying the correct torque and angle to each joint. Analyze the data logs to ensure consistency and repeatability.
• Cycle Time Analysis: Confirm that the system meets the required cycle time for your production line.

5. Operator Training and Ongoing Maintenance

A well-set-up system is only effective if the team knows how to use and maintain it.

• Comprehensive Training: Train operators on how to start, stop, and monitor the system. Train maintenance personnel on basic troubleshooting, bit changes, and preventive maintenance tasks like lubrication.
• Preventive Maintenance Schedule: Establish a strict schedule for checking and maintaining mechanical components (spindle bearings, gears) and recalibrating torque sensors.

A successful multi-axis screw tightening system setup hinges on meticulous planning, precise installation, and thorough validation. By following these steps, you can unlock new levels of speed, quality, and data-driven insight in your assembly process, ensuring every product is built perfectly, every time.
